• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system feature, 4-speaker system (Requires Regular Cab models)
• Audio system, AM/FM stereo with MP3 compatible CD player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Floor covering, Black rubberized vinyl
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Steering wheel, includes theft-deterrent locking feature
• Tire Pressure Monitoring System (does not apply to spare tire)
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• XM Satellite Radio (subscription required)

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, hydroformed
• GVWR, 9200 lbs. (4173 kg)
• Pickup box, Wideside
• Rear axle, 3.73 ratio
• Rear wheel drive
• Recovery hooks, front, frame-mounted
• Steering, power, recirculating ball
• Suspension Package, Handling/Trailering, heavy-duty, includes 35mm twin tube shock absorbers and 36mm front stabilizer bar
• Suspension, front independent, torsion bar
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic

• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
• Brakes, 4-wheel antilock, 4-wheel disc
• OnStar Equipped (subscription required)

AIR CONDITIONING, SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL

• (Standard on Extended and Crew Cab models)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

CRUISE CONTROL, ELECTRONIC

• with set and resume speed
• located on steering wheel

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

PICKUP BOX, WIDESIDE

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI

• (353 hp [262.8 kW] @ 5400 rpm
• 373 lb-ft of torque [505.6 N-m] @ 4400 rpm) (STD)

TIRES, LT245/75R16E ALL-SEASON, BLACKWALL

• (STD) Includes 5 tires with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform and 2.5-inch receiver with 2" adapter
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• wiring harness for after-market trailer brake controller (located in the instrument panel harness)
• and single wire for center high-mounted stop lamp

CARGO MANAGEMENT SYSTEM

• aluminum front and side C-channel rails located in the pickup box
• includes 4 adjustable tie-down hooks

MIRRORS, OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE, BLACK

• with manual folding and extension and lower convex spotter glass

WHEELS, 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL

• includes painted center caps and steel spare (STD)

TIRE, SPARE LT245/75R16 ALL-SEASON, BLACKWALL

• includes 16" (40.6 cm) steel spare wheel and spare tire carrier
• located on top of frame crossmember

• AIR CONDITIONING SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL (Standard on Extended and Crew Cab models)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• REAR AXLE 3.73 RATIO
• CRUISE CONTROL ELECTRONIC with set and resume speed located on steering wheel
• DARK TITANIUM VINYL SEAT TRIM
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• PICKUP BOX WIDESIDE (STD)
• LICENSE PLATE BRACKET FRONT
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• PAINT SOLID
• BRAKE CONTROLLER INTEGRATED TRAILER
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI (353 hp [262.8 kW] @ 5400 rpm 373 lb-ft of torque [505.6 N-m] @ 4400 rpm) (STD)
• TIRES LT245/75R16E ALL-SEASON BLACKWALL (STD) Includes 5 tires with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5-inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and single wire for center high-mounted stop lamp
• CARGO MANAGEMENT SYSTEM aluminum front and side C-channel rails located in the pickup box includes 4 adjustable tie-down hooks
• MIRRORS OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE BLACK with manual folding and extension and lower convex spotter glass
• SUMMIT WHITE
• WHEELS 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL includes painted center caps and steel spare (STD)
• TIRE SPARE LT245/75R16 ALL-SEASON BLACKWALL includes 16" (40.6 cm) steel spare wheel and spare tire carrier located on top of frame crossmember
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Daytime Running Lights
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Telematics
• Requires Subscription
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2931
• Curb Weight - Rear (lbs): 2189
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1560
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZIZ
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.0
• Length, Overall w/o rear bumper (in): 224.7
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 76.4
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.5
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 11.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary

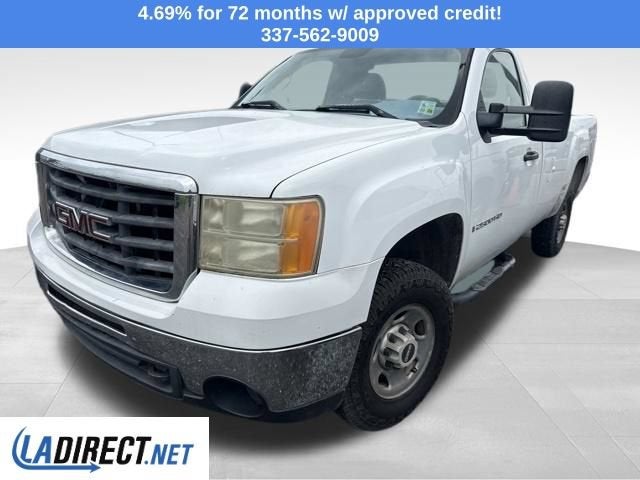

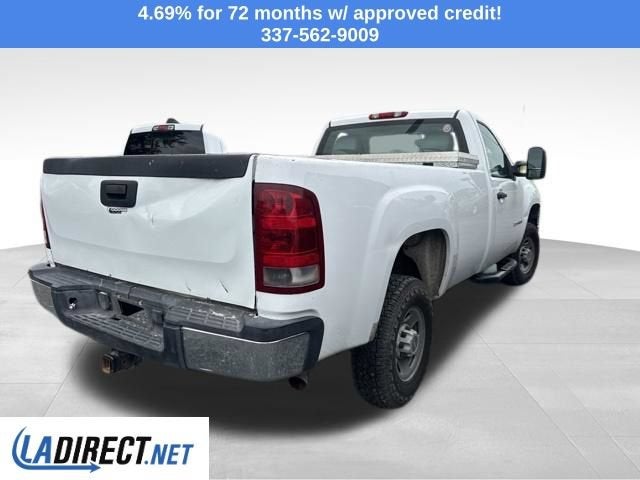

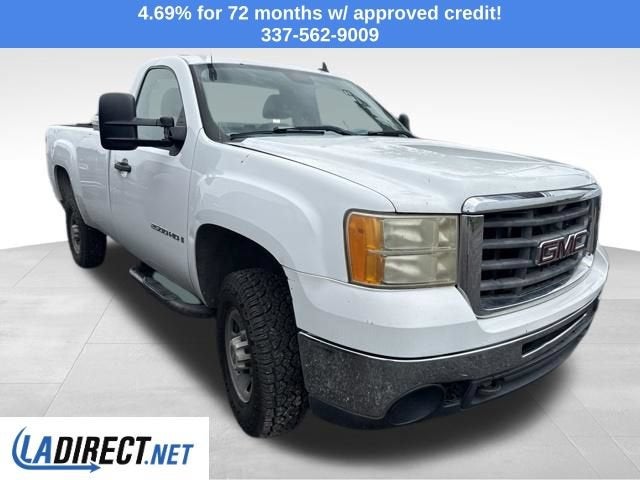

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Reg Cab 8' Fleetside
• Body Code: E63
